Cryostat feedthroughs and wiring
All options fit a standard 1.375 in square o-ring sealed feedthrough port unless noted.
Hermetic feedthroughs — unwired
| 10P-ASSEMBLY | 10-pin feedthrough with mating connector | ||
|---|---|---|---|
| 10PIN | 10-pin UHV feedthrough, mini-ConFlat mounted with mating connector (fits UHV cryostats only) | ||
| 10PIN-NM | Non-magnetic 10-pin feedthrough with mating connector | ||
| 19P-ASSEMBLY | 19-pin feedthrough with mating connector | ||
| 26P-ASSEMBLY | 26-pin feedthrough with mating connector | ||
| 32P-ASSEMBLY | 32-pin feedthrough with mating connector | ||
| 45853 | Thermocouple feedthrough (including support clamp) | ||
| EF-4-BNC-2-TRX-G | Breakout box with 4 jack-to-jack BNC feedthroughs and 2 jack-to-jack triaxial feedthroughs — grounded flange | ||
| EF-4-BNC-2-TRX-I | Breakout box with 4 jack-to-jack BNC feedthroughs and 2 jack-to-jack triaxial feedthroughs — insulated flange | ||
| EF-COMPR-SEAL | 1/16 in o-ring compression seal installed on feedthrough flange | ||
| EF-BNC-1-B-AL | Single BNC feedthrough, jack-to-jack — grounded flange | ||
| EF-BNC-1-B-NC | Single BNC feedthrough, jack-to-jack — insulated flange | ||
| EF-BNC-2-S-AL | Double BNC feedthrough, solder connection — grounded flange | ||
| EF-BNC-2-S-NC | Double BNC feedthrough, solder connection — insulated flange | ||
| EF-BNC-6-G | Breakout box with 6 jack-to-jack BNC feedthroughs — grounded flange | ||
| EF-BNC-6-I | Breakout box with 6 jack-to-jack BNC feedthroughs — insulated flange | ||
| EF-SMA-2-B-AL | Double SMA feedthrough, jack-to-jack — grounded flange | ||
| EF-SMA-2-B-NC | Double SMA feedthrough, jack-to-jack — insulated flange | ||
| EF-SMA-6-G | Breakout box with 6 jack-to-jack SMA feedthroughs — grounded flange | ||
| EF-SMA-6-I | Breakout box with 6 jack-to-jack SMA feedthroughs — insulated flange | ||
| EF-TRIAX-1-B-AL | Single triaxial feedthrough, jack-to-jack — grounded flange | ||
| EF-TRIAX-1-B-NC | Single triaxial feedthrough, jack-to-jack — insulated flange | ||
| EF-TRIAX-6-G | Breakout box with 6 jack-to-jack triaxial feedthroughs — grounded flange | ||
| EF-TRIAX-6-I | Breakout box with 6 jack-to-jack triaxial feedthroughs — insulated flange | ||
Hermetic feedthroughs with installed wiring
All wiring is loose in the sample area unless otherwise stated.
Please note that compact cryostats, including the ST-500 Series, have limited internal space and cannot accommodate bulkier wiring. Contact Sales for more details.
| WH-10P | 10-pin feedthrough with 10 PhBr twisted-pair wires installed; includes mating connector | ||
|---|---|---|---|
| WH-10P-8RES | 10-pin feedthrough with 8 PhBr twisted-pair wires installed, configured for use with an 8-pin resistivity sample holder; includes 2 4-pin mini-connectors and mating connector | ||
| WH-10P-FP | 10-pin feedthrough with 4 PhBr twisted-pair wires installed, configured for use with a 500 K fixed-probe sample holder | ||
| WH-10P-FP-H | 10-pin feedthrough with 4 Cu wires installed, configured for use with an 800 K fixed-probe sample holder | ||
| WH-19P | 19-pin feedthrough with 18 PhBr twisted-pair wires installed; includes mating connector | ||
| WH-26P | 26-pin feedthrough with 26 PhBr twisted-pair wires installed; includes mating connector | ||
| WH-32P | 32-pin feedthrough with 32 PhBr twisted-pair wires installed; includes mating connector | ||
| WH-4-BNC-2-TRX-G | Breakout box with 4 jack-to-jack BNC feedthroughs with 4 coaxial cables installed and 2 jack-to-jack triaxial feedthroughs with 2 triaxial cables installed — grounded flange and outer shields | ||
| WH-4-BNC-2-TRX-I | Breakout box with 4 jack-to-jack BNC feedthroughs with 4 coaxial cables installed and 2 jack-to-jack triaxial feedthroughs with 2 triaxial cables installed — insulated flange/floating shields | ||
| WH-BNC-1-G | Single BNC feedthrough with 1 jack-to-jack BNC feedthrough and 1 coaxial cable installed — grounded flange and shield | ||
| WH-BNC-1-NC | Single BNC feedthrough with 1 jack-to-jack BNC feedthrough and 1 coaxial cable installed — insulated flange/floating shield | ||
| WH-BNC-2-G | Double BNC feedthrough with two solder-cup BNC feedthroughs and two coaxial cables installed — grounded flange and shields | ||
| WH-BNC-2-G-FP | 2 double BNC feedthroughs with 4 coaxial cables installed, configured for use with a 500 K fixed-probe sample holder — grounded flange and shield | ||
| WH-BNC-2-G-FP-H | 2 double BNC feedthroughs with 4 copper wires installed, configured for use with an 800 K fixed-probe sample holder — grounded flange | ||
| WH-BNC-2-NC | Double BNC feedthrough with two solder-cup BNC feedthroughs and two coaxial cables installed — insulated flange/floating shields | ||
| WH-BNC-2-NC-FP | 2 double BNC feedthroughs with 4 coaxial cables installed, configured for use with a 500 K fixed-probe sample holder — insulated flange/floating shields | ||
| WH-BNC-2-NC-FP-H | 2 double BNC feedthroughs with 4 copper wires installed, configured for use with an 800 K fixed-probe sample holder — insulated flange | ||
| WH-BNC-6-G | Breakout box with 6 jack-to-jack BNC feedthroughs and 6 coaxial cables installed — grounded flange and shields | ||
| WH-BNC-6-I | Breakout box with 6 jack-to-jack BNC feedthroughs and 6 coaxial cables installed — insulated flange/floating shields | ||
| WH-SMA-2-G | Double SMA feedthrough with two jack-to-jack SMA feedthroughs and two coaxial cables installed — grounded flange and shields | ||
| WH-SMA-2-NC | Double SMA feedthrough with two jack-to-jack SMA feedthroughs and two coaxial cables installed — insulated flange/floating shields | ||
| WH-SMA-6-G | Breakout box with 6 jack-to-jack SMA feedthroughs and 6 coaxial cables installed — grounded flange and shields | ||
| WH-SMA-6-I | Breakout box with 6 jack-to-jack SMA feedthroughs and 6 coaxial cables installed — insulated flange/floating shields | ||
| WH-TRIAX-1-G | Single triaxial feedthrough with 1 jack-to-jack triaxial feedthrough and 1 triaxial cable installed — grounded flange and shields | ||
| WH-TRIAX-1-NC | Single triaxial feedthrough with 1 jack-to-jack triaxial feedthrough and 1 triaxial cable installed — insulated flange/floating shields | ||
| WH-TRIAX-6-G | Breakout box with 6 jack-to-jack triaxial feedthroughs and 6 triaxial cables installed — grounded flange and shields | ||
| WH-TRIAX-6-I | Breakout box with six jack-to-jack triaxial feedthroughs and six triaxial cables installed — insulated flange/floating shields | ||

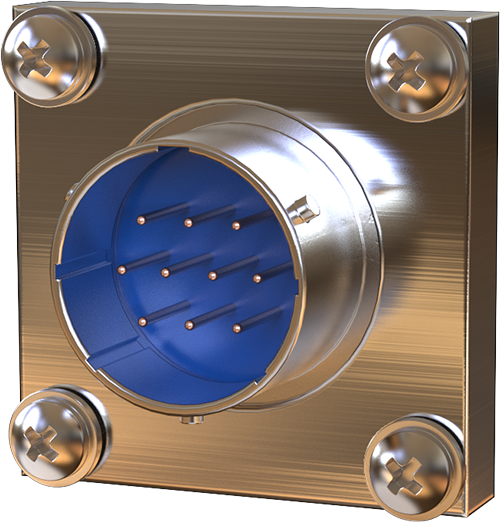

10-pin feedthrough

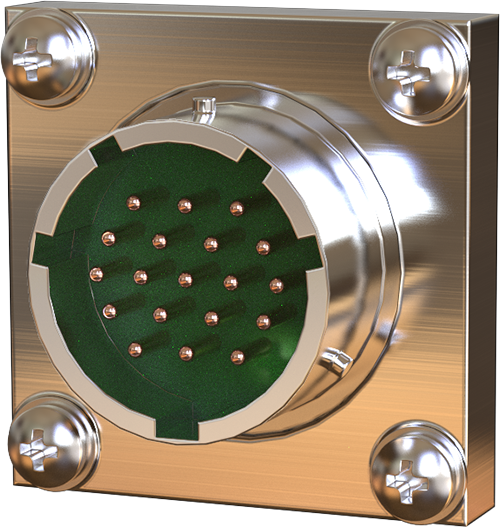

19-pin feedthrough

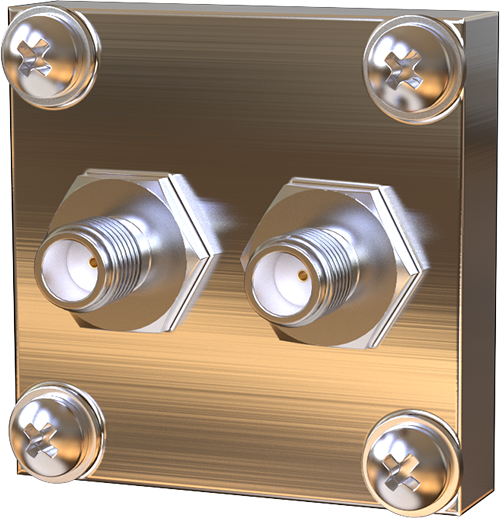

Dual SMA feedthrough

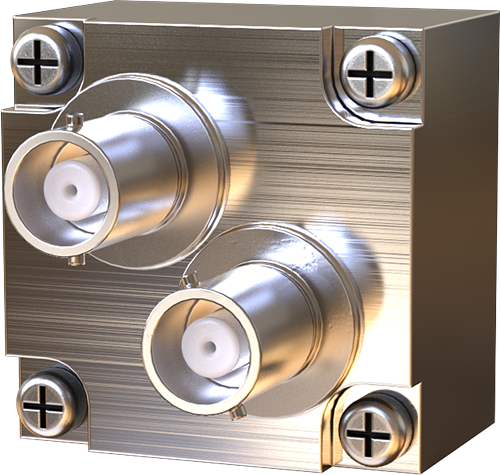

Dual BNC feedthrough
